Diagonal Strip in Square Lattice

Diagonally oriented strip in a square lattice, created by the diagstrip function

Jerusalem Cross

Jerusalem cross in a square lattice, created by the jerusalemcross function

Loaded Jerusalem Cross

Loaded jerusalem cross in a square lattice, created by the jerusalemcross function

Partially Loaded Jerusalem Cross

Partially loaded jerusalem cross in a square lattice, created by the jerusalemcross function

Crossed Dipole

Crossed dipole in a square lattice, created by the loadedcross function

Loaded Cross

Loaded Cross in a square lattice, created by the loadedcross function

Tilted Cross

Tilted Cross in a triangular lattice, created by the loadedcross function

Manji (Clockwise)

Manji (clockwise) in a square lattice, with folded arms, center square, and outer ring, created by the manji function

Manji (Counter-clockwise)

Manji (counter-clockwise) in a square lattice, with folded arms, center square, and outer ring, created by the manji function

Manji (Clockwise, Rotated, No Center Square)

Manji oriented at 30° in a hexagonal lattice, with folded arms, no center square, no outer ring, created by the manji function

Manji (Clockwise, No Fold)

Manji (clockwise) in a square lattice, with unfolded arms, center square, and outer ring, created by the manji function

Meanderline Polarizer Sheet

Meanderline trace created by the meander function

Square Loops

Square loops created by the polyring function

Octagonal Loop in Octagonal Hole

Octagonal loop within an octagonal hole, created by the polyring function

Circular Loop

Circular loop in a triangular lattice, created by the polyring function

Hexagonal Loop with Patch

Hexagonal loop with patch in a triangular lattice, created by the polyring function

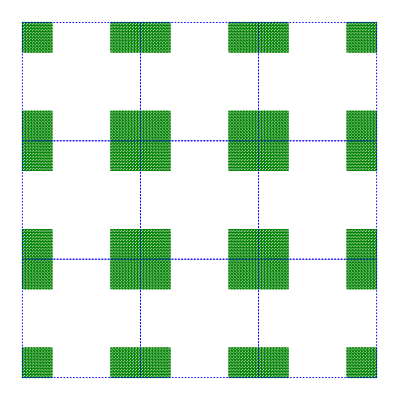

Square Patch

Square patch created by the rectstrip function

Horizontal Grid

Horizontal grid created by the rectstrip function

Vertical Grid

Vertical grid created by the rectstrip function

Rotated Rectangular Strip

Rotated rectangular strips created by the rectstrip function

Oriented Rectangular Strip

Oriented rectangular strips created by the rectstrip function

Sinuous (3-Arm)

Sinuous 3-arm element in a hexagonal lattice, created by the sinuous function

Sinuous (4-Arm, Fancy Rim)

sinuous 4-arm element in a square lattice with fancy rim, created by the sinuous function

Sinuous (2-Arm, Plain Rim)

sinuous 2-arm element in a square lattice with plain rim, created by the sinuous function

Circular Split Rings with Narrow Double Gaps

Circular split rings in a square lattice created by the splitring function

Circular Split Rings with Wide Gaps

Circular wide-gap split rings in a square lattice created by the splitring function

Square Split Ring with Narrow Gap

Square narrow-gap split rings in a square lattice created by the splitring function
